คำอธิบายของผลิตภัณฑ์
OVERVIEW
Our L1 system offering a unique combination of performance and portability for an audience of up to 300. With a 12-speaker articulated line array providing 180 degrees of clear, even, sound, the system is also designed to work with the T1 ToneMatch® audio engine as well as a choice in bass modules. Easy to transport, and set up in minutes.
For indoor applications only.
FEATURES
High-performing, powered, portable two-way loudspeaker system with a 195° H x 10° V nominal dispersion designed for the production and reproduction of live music, music playback, speeches and A/V sound reproduction
12-driver articulated line array produces wide, uniform sound coverage throughout the entire listening area—even off to the extreme sides
Consistent front-to-back coverage, 12 drivers mounted in a vertical line array produce less drop off in sound pressure level per doubling in distance than a conventional point source
Retractable folding leg mechanism for easy transport
Lightweight, interlocking components
Expandable bass design supports the use of multiple B1 bass modules or a single B2 module
Digital ethercon port provides single-wire connectivity for the T1 ToneMatch audio engineOVERVIEW
Our L1 system offering a unique combination of performance and portability for an audience of up to 300. With a 12-speaker articulated line array providing 180 degrees of clear, even, sound, the system is also designed to work with the T1 ToneMatch® audio engine as well as a choice in bass modules. Easy to transport, and set up in minutes.
For indoor applications only.
FEATURES
High-performing, powered, portable two-way loudspeaker system with a 195° H x 10° V nominal dispersion designed for the production and reproduction of live music, music playback, speeches and A/V sound reproduction
12-driver articulated line array produces wide, uniform sound coverage throughout the entire listening area—even off to the extreme sides
Consistent front-to-back coverage, 12 drivers mounted in a vertical line array produce less drop off in sound pressure level per doubling in distance than a conventional point source
Retractable folding leg mechanism for easy transport
Lightweight, interlocking components
Expandable bass design supports the use of multiple B1 bass modules or a single B2 module
Digital ethercon port provides single-wire connectivity for the T1 ToneMatch audio engine
SPEC
Technical Summary
Frequency Response (+/-3 dB)
40 Hz - 12 kHz
Frequency Range (-10 dB)
32 Hz - 14 kHz
Nominal Dispersion
195° H x 10° V
Maximum SPL @ 1 m
112 dB SPL (118 dB SPL peak)

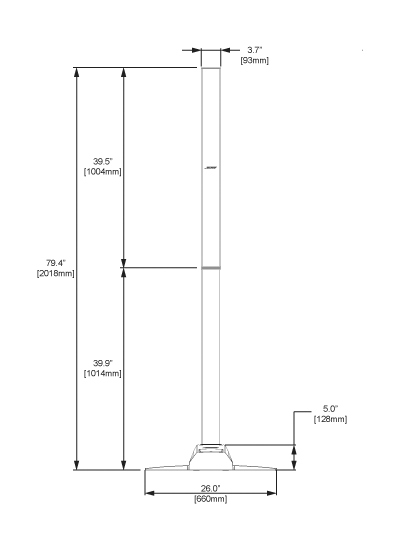

Mechanical Diagrams

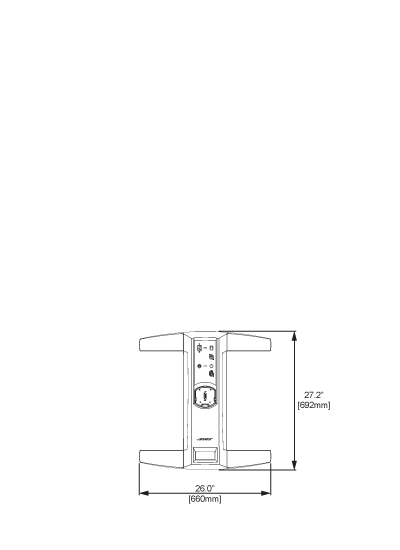

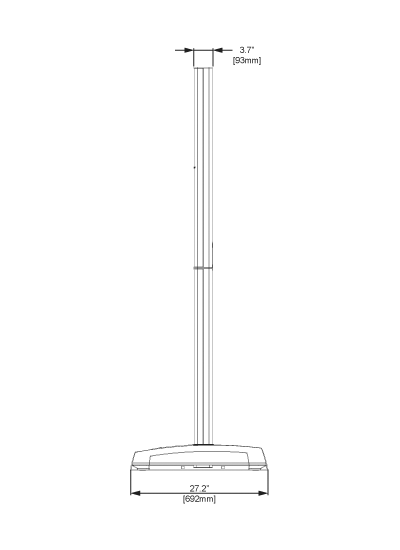

L1 Model 1S
Front View
Top View
Side View

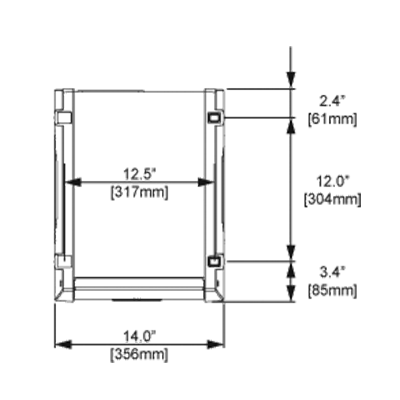

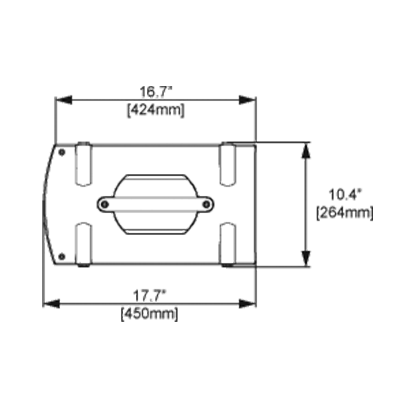

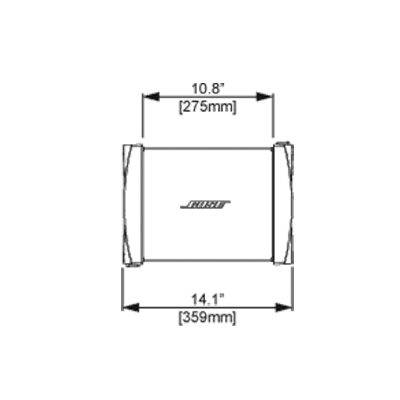

B1 Bass Module
Front View
Top View
Side View

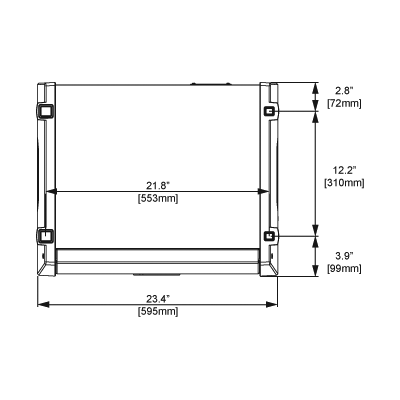

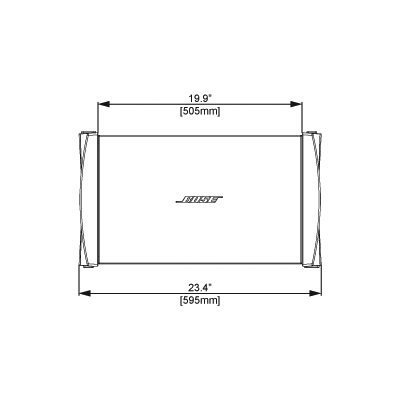

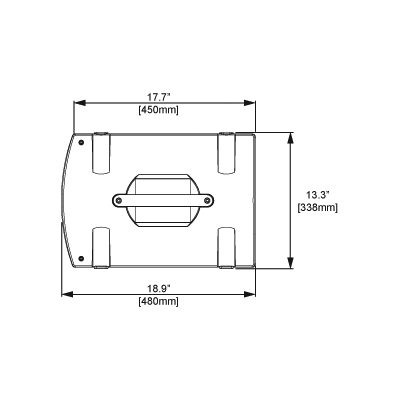

B2 Bass Module
Front View
Top View
